MITHRIL INTERCEPTS HIGH-GRADE SILVER AT TARGET 5 RETURNING 1,714 G/T AgEq (5.8 G/T AU, 1,308 G/T AG) OVER 1.0 M AT THE COPALQUIN DISTRICT, MEXICO

← All announcements

November 5, 2025

Melbourne, Australia and Vancouver, Canada -November 5, 2025 Mithril Silver and Gold Limited ("Mithril' or the "Company") (TSXV: MSG) (ASX: MTH) (OTCQB: MTIRF) is pleased to provide exploration results and update for multiple targets at Mithril's district scale Copalquin property, Durango State, Mexico.

  • High-grade intercepts returned from initial drilling at Target 5, a new, silver rich target in the southwest area of the Copalquin District at lower elevation within the large Copalquin epithermal gold-silver system -with results up to 100 metres below surface near the historic El Apomal mine; only ~5% of the mapped and projected vein system has been tested to date.
  • Target 5 highlights include :
  • o 2.75 m @ 660 g/t AgEq 1 ( 2.28 g/t gold, 500 g/t silver) from 93.6 m (AP25-003), including 1.00 m @ 1,714 g/t AgEq ( 5.80 g/t gold, 1,308 g/t silver) from 94.7 m
  • o 3.35 m @ 366 g/t AgEq ( 1.71 g/t gold, 246 g/t silver) from 90.15 m (AP25-005), including 1.05 m @ 1,146 g/t AgEq ( 5.35 g/t gold, 771 g/t silver) from 92.45 m
  • o 1.25 m @ 728 g/t AgEq ( 4.55 g/t gold, 409 g/t silver) from 119.2 m (AP25-006), plus 0.90 m @ 616 g/t AgEq ( 2.41 g/t gold, 447 g/t silver) from 138.1 m, plus 0.80 m @ 427 g/t AgEq ( 1.51 g/t gold, 321 g/t silver) from 149.5 m
  • Target 5 Drilling is progressing rapidly, with 13 drill holes now completed. Assays have been received for the first eight holes which have all returned reportable mineralised intercepts. Ongoing mapping and channel sampling continues to expand this large target area.
  • Tasolera Mine area at Target 5 - drilling commences this week following up high-grade channel sampling, including 3,440 g/t AgEq (2.0 g/t gold, 3,300 g/t silver) 2 over 1.40m at this highly prospective area of Target 5.
  • Target 3 -preparations continue for drilling in the coming months, with further channel sample results pending and the addition of a third rig. Target 3 is a large and highly prospective gold-silver area with multiple high-grade surface samples returned to date and extensive veins mapped.

'Our maiden drill program at Target 5 is off to an excellent start, delivering multiple high-grade gold-silver intercepts from this new, silverrich target in the southwest of the Copalquin District,' said John Skeet, Managing Director & CEO. 'Assays received for the first eight of thirteen holes all returned reportable mineralisation, confirming the strength of this emerging target -and our work here has just begun with only five percent of the mapped and projected veins tested to date to just 100 metres below surface.'

'Target 5 is rapidly emerging as a major new silver-dominant zone within the broader Copalquin epithermal system where drilling continues, with holes at the high-grade Tasolera mine area commencing this week. At the same time, Mithril continues to advance Target 3 to drill readiness with ongoing mapping and sampling, while at Target 1 drilling is testing the western extension of the maiden resource area toward the El Gallo mine, 900 metres to the west.'

1 See 'About Copalquin Gold Silver Project' section for JORC MRE details, AuEq (gold equivalent) and AgEq. (silver equivalent) calculations 2 See ASX announcement: 09/10/2025 - SILVER RICH TARGET 5, SAMPLING UP TO 3,300 G/T SILVER

Extracted image 2

Extracted image 3

District Outlook

Mithril is fully funded to complete 45,000 metres of drilling through to the second half of 2026, with preparations to add a third drill rig in early 2026 at Target 3. Target 1 drilling continues to focus on expanding the current resource area in the district and drilling is well underway at Target 5. Detailed mapping and sampling also continue to advance across multiple targets, underpinning the district-scale potential of Copalquin. A closely spaced aerial magnetic survey will be flown late 2025 and a petrographic fluid inclusion study on samples across the district is supporting the ongoing development of the district scale model for this large epithermal gold-silver system.

COPALQUIN GOLD-SILVER DISTRICT, DURANGO STATE, MEXICO

With 100 historic underground gold-silver mines and workings plus 198 surface workings/pits throughout 70km 2 of mining concession area, Copalquin is an entire mining district with high-grade exploration results and a maiden JORC resource. To date there are several target areas in the district with one already hosting a high-grade gold-silver JORC mineral resource estimate (MRE) at the Target 1 area (El RefugioLa Soledad) 3 and a NI 43-101 Technical Report filed on SEDAR+, supported by a conceptional underground mining study completed on the maiden resource in early 2022 and metallurgical test work (see ASX Announcement 25 February 2022 ). There is considerable strike and depth potential to increase the resource at El Refugio and at other target areas across the district, plus the underlying geologic system that is responsible for the widespread gold-silver mineralisation.

With the district-wide gold and silver occurrences and rapid exploration success, it is clear the Copalquin District is developing into another significant gold-silver district like the many other districts in this prolific Sierra Madre Gold-Silver Trend of Mexico.

Figure 1 -Copalquin District location map, locations of mining and exploration activity and local infrastructure.

Extracted image 4

3 See 'About Copalquin Gold Silver Project' section for JORC MRE details and AuEq. calculation.

Extracted image 5

Extracted image 6

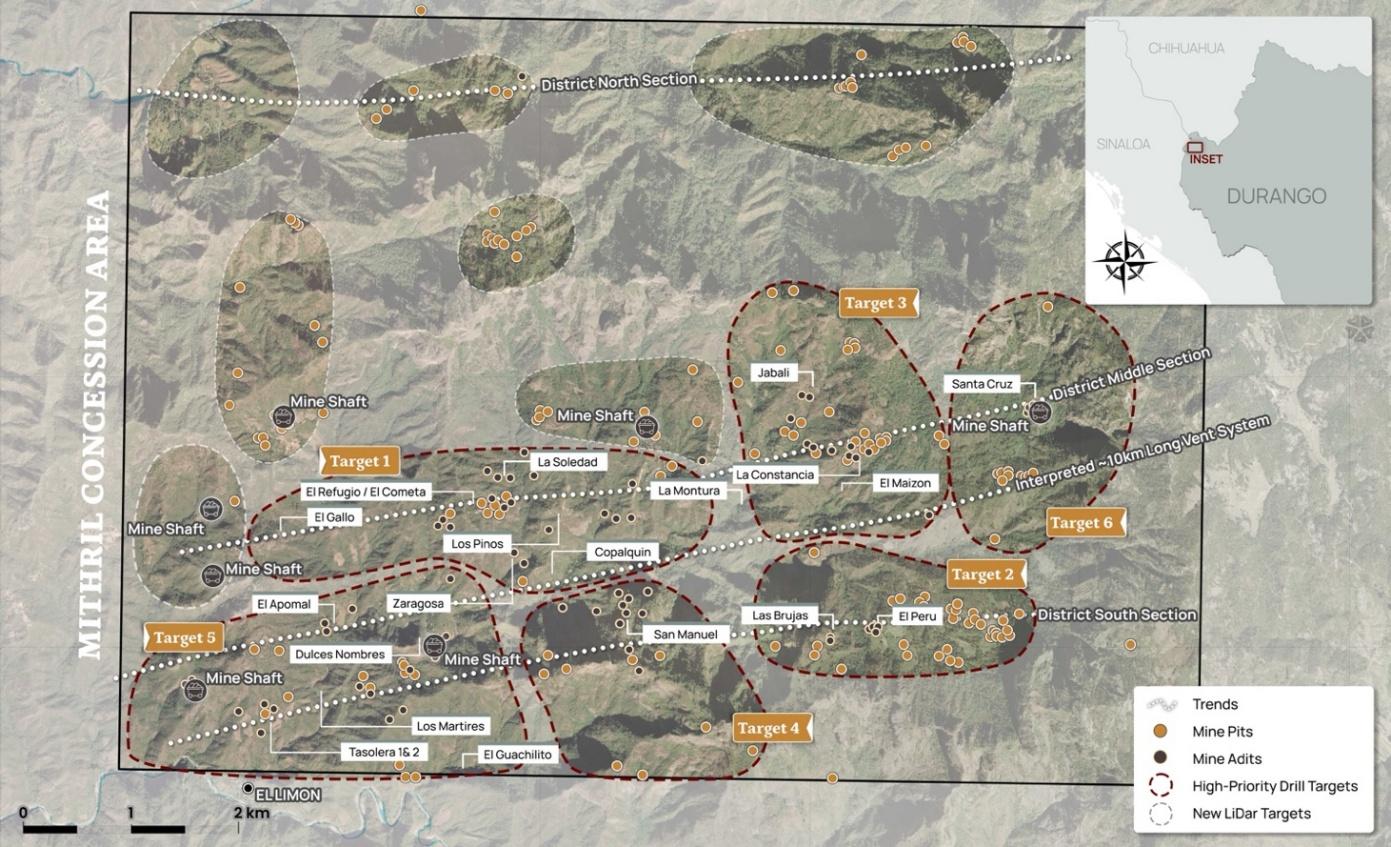

Figure 2 LiDAR identified historic workings across the 70km2 district. Current drilling locations at Target 1 west and Target 5 (El Apomal), and recent drilling at Zaragoza mine in Target 1 south, high priority drill target area of La Constancia-El Jabali (Target 3). Several new areas highlighted across the district for follow-up work including recently sampled Target 6

Extracted image 7

Copalquin District Exploration Progress Update

Extracted image 8

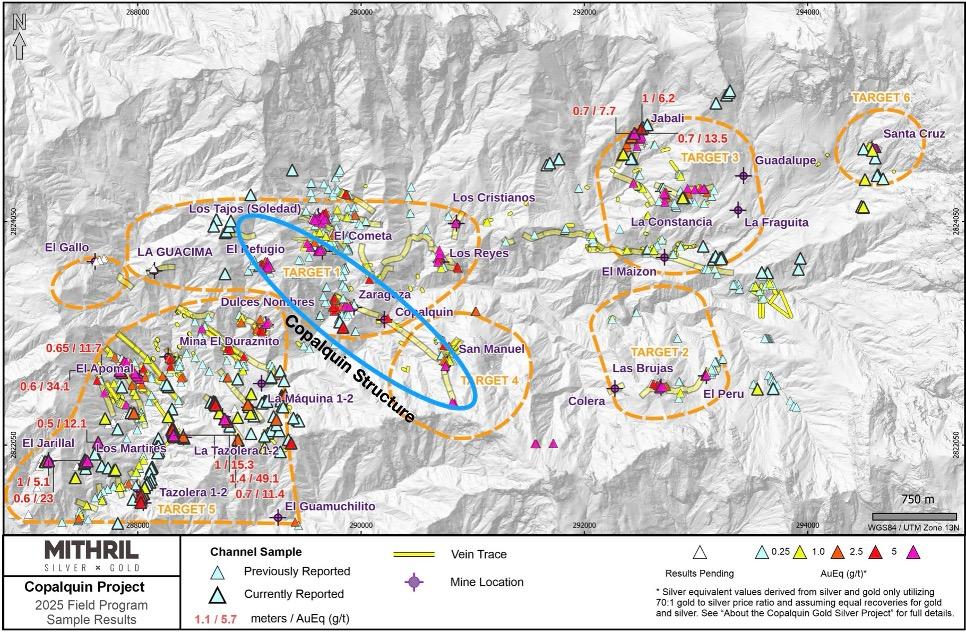

Figure 3 Property-wide channel sampling results for the middle and south district sections within ~50% of the 70 km 2 mining concession area covering the Copalquin District

Extracted image 9

Extracted image 10

Target 5 Drilling Discussion

Target 5 first drill holes successfully intercepted the targeted veins 20m to 100m below the surface in the first round of drilling for which there are reported assays. All eight reported drill holes returned reportable gold-silver intercepts in the silver rich area of the Copalquin District and hosted in the granodiorite intrusive rock unit.

Table 1 Reported drill hole interval highlights for drill holes AP25-001 to Ap25-008 (intervals are close to true widths. More drill data required to more accurately determine)

Hole ID From (m) To (m) Interval Au g/t Ag g/t AgEq g/t AuEq g/t
AP25-001 32 32.5 0.5 1.21 39.3 124 1.77
AP25-001 279.83 280.35 0.52 1.285 167 256.95 3.67
AP25-002 31.45 35.3 3.85 1.26 42.65 130.85 1.87
Including 31.45 31.95 0.5 7.74 187 728.8 10.41
AP25-003 34.5 35 0.5 0.393 62.4 89.91 1.28
AP25-003 93.6 96.35 2.75 2.28 500 659.6 9.42
Including 94.7 95.7 1 5.8 1307.5 1713.5 24.48
AP25-003 214 215.3 1.3 2.89 0.5 202.8 2.90
AP25-003 231.6 232.3 0.7 2.38 1.5 168.1 2.40
AP25-004 89.2 90.65 1.45 0.57 109.6 149.5 2.14
AP25-005 35.65 39.7 4.05 0.19 61.5 74.8 1.07
Including 36.75 38.35 1.6 0.41 130 158.7 2.27
AP25-005 90.15 93.5 3.35 1.71 246 365.7 5.22
(Including 92.45 93.5 1.05 5.35 771 1145.5 16.36
AP25-006 119.2 120.45 1.25 4.548 409.12 727.48 10.39
AP25-006 138.1 139 0.9 2.41 447 615.7 8.80
AP25-006 149.75 150.55 0.8 1.51 321 426.7 6.10
AP25-006 301.4 301.9 0.5 0.187 73 86.09 1.23
AP25-007 51 52.5 1.5 0.23 15.2 31.3 0.45
AP25-007 62.75 64.8 2.05 0.27 88.1 107 1.53
Including 64.3 64.8 0.5 0.9 311 374 5.34
AP25-008 78.2 78.9 0.7 0.344 11.9 35.98 0.51

The first program of drilling has tested 350m of strike (with assays for the remaining 5 drill holes pending) including drilling to test greater depths of the veins in this area.

This week the first program of holes will commence at the high-grade Tasolera mine workings area where channel sampling results have highlighted this as a highly prospective area in Target 5.

Mapping and channel sampling of the Target 5 area is also ongoing with district scale work aiming to continue development of the district geologic model advancing the interpretations for the future system definition drilling.

Extracted image 11

Extracted image 12

Extracted image 13

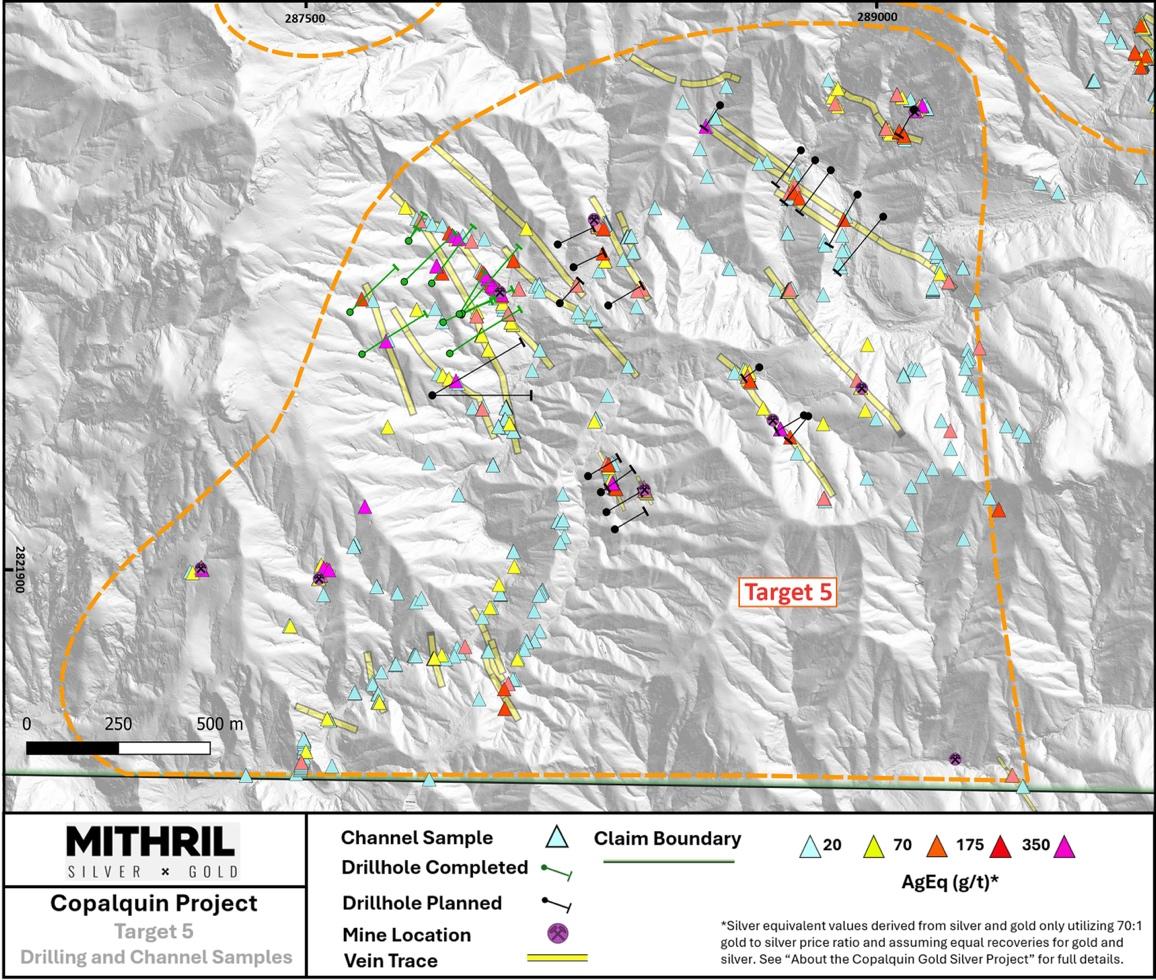

Figure 4 The large Target 5 Drill area in southwest area of the Copalquin District

Extracted image 14

Figure 5 Magnified area of Target 5 Drill results. 350m of strike tested with further assays pending, accounting for only ~5% of the total mapped and projected veins in the Target 5 area

Extracted image 15

Extracted image 16

Extracted image 17

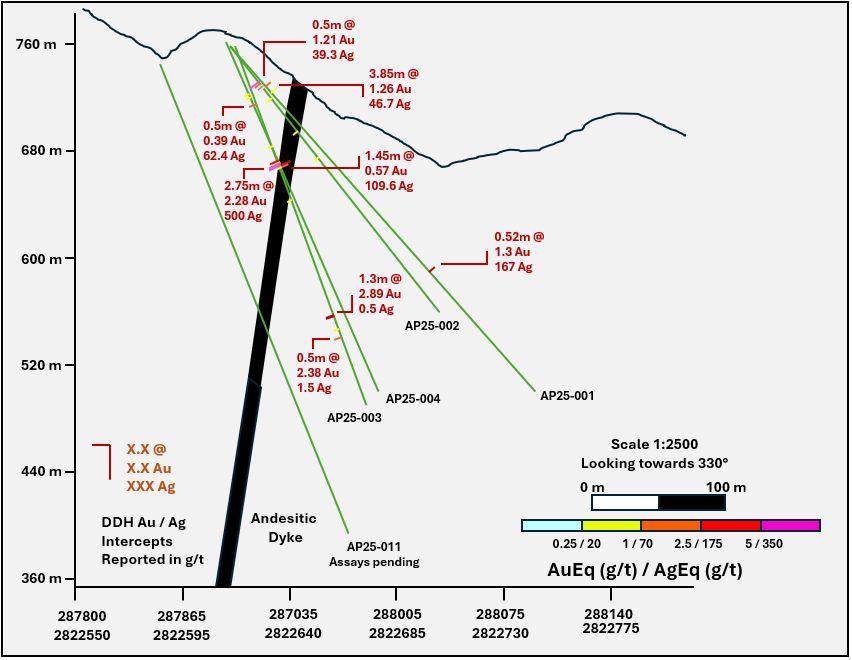

Figure 6 Cross section of holes AP25-001 to AP25-004 at Target 5.

Extracted image 18

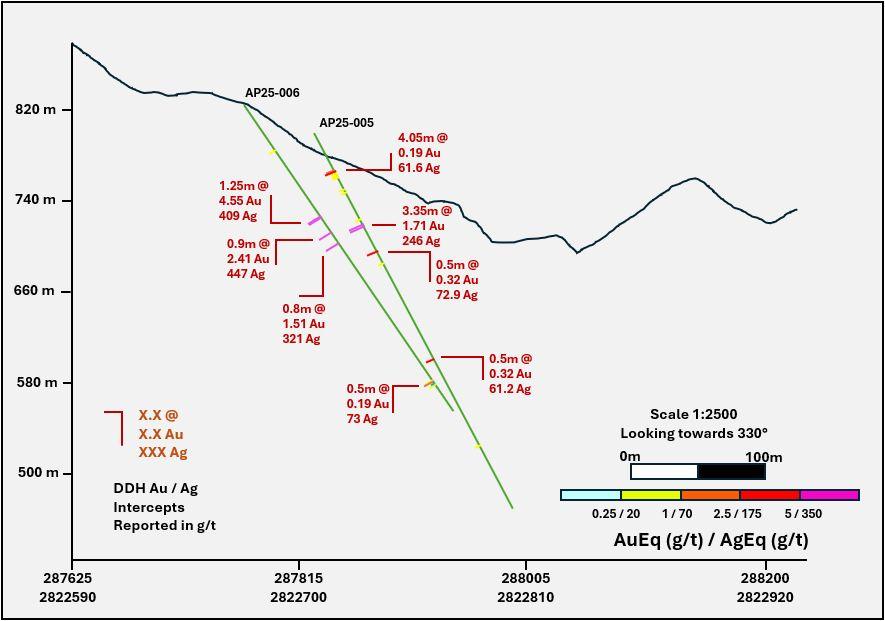

Figure 7 Cross section of holes AP25-005 and AP25-006 at Target 5. AP25-006 is 200m along strike from AP25-003.

Extracted image 19

Extracted image 20

Table 2 Drill hole collar details reported in this announcement

Hole ID Easting (m) Northing (m) Elevation (m) Azimuth (degrees) Inclination (degrees) Depth (m) Assays
AP25-001 287910 2822591 758.82 40 -48 351 Received
AP25-002 287909 2822588 758.01 63 -53 252 Received
AP25-003 287910 2822591 758.82 63 -69 285 Received
AP25-004 287903.2 2822590 760.85 30 -63 291 Received
AP25-005 287828 2822672 799.94 35 -60 381 Received
AP25-006 287753 2822676 825.53 44 -55 330 Received
AP25-007 287765 2822785 813.31 30 -48 126 Received
AP25-008 287765 2822785 813.31 30 -77 177 Received
AP25-009 287605 2822595 891.75 45 -55 300 Pending
AP25-010 287638 2822483 854.12 60 -46 300 Pending
AP25-011 287859 2822568 744.79 63 -69 381 Pending
AP25-012 287877 2822485 741.56 60 -50 351 Pending
AP25-013 drilling

ABOUT THE COPALQUIN GOLD SILVER PROJECT

The Copalquin mining district is located in Durango State, Mexico and covers an entire mining district of 70km 2 containing several dozen historic gold and silver mines and workings, ten of which had notable production. The district is within the Sierra Madre Gold Silver Trend which extends north-south along the western side of Mexico and hosts many gold and silver districts.

Multiple mineralisation events, young intrusives thought to be system-driving heat sources, widespread alteration together with extensive surface vein exposures and dozens of historic mine workings, identify the Copalquin mining district as a major epithermal centre for Gold and Silver.

Within 15 months of drilling in the Copalquin District, Mithril delivered a maiden JORC mineral resource estimate demonstrating the high-grade gold and silver resource potential for the district. This maiden resource is detailed below (see ASX release 17 November 2021 ) ^ and a NI 43-101 Technical Report filed on SEDAR+

  • Indicated 691 kt @ 5.43 g/t gold, 114 g/t silver for 121,000 oz gold plus 2,538,000 oz silver
  • Inferred 1,725 kt @ 4.55 g/t gold, 152 g/t silver for 252,000 oz gold plus 8,414,000 oz silver (using a cut-off grade of 2.0 g/t AuEq*)
  • 28.6% of the resource tonnage is classified as indicated

Table 3 Mineral resource estimate El Refugio -La Soledad using a cut-off grade of 2.0 g/t AuEq*

Tonnes (kt) Tonnes (kt) Gold (g/t) Silver (g/t) Gold Eq.* (g/t) Gold (koz) Silver (koz) Gold Eq.* (koz)
El Refugio Indicated 691 5.43 114.2 7.06 121 2,538 157
Inferred 1,447 4.63 137.1 6.59 215 6,377 307
La Soledad Indicated - - - - - - -
Inferred 278 4.12 228.2 7.38 37 2,037 66
Total Indicated 691 5.43 114.2 7.06 121 2,538 157
Inferred 1,725 4.55 151.7 6.72 252 8,414 372

Extracted image 21

Extracted image 22

  • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((Ag grade/70) x (Ag recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com.

For silver equivalent (AgEq.) grade reporting, the same factors as above are used with the formula AgEq grade = Ag grade + ((Au grade x 70) x (Au recovery/Ag recovery))

At this early stage, the metallurgical recoveries were assumed to be equal (93%). Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022) and these will be used when the resource is updated in the future. In the Company's opinion there is reasonable potential for both gold and silver to be extracted and sold.

^ The information in this report that relates to Mineral Resources or Ore Reserves is based on information provided in the following ASX announcement: 17 Nov 2021 - MAIDEN JORC RESOURCE 529,000 OUNCES @ 6.81G/T (AuEq * ), which includes the full JORC MRE report, also available on the Mithril Resources Limited Website.

The Company confirms that it is not aware of any new information or data that materially affects the information included in the original market announcement and that all material assumptions and technical parameters underpinning the estimates in the relevant market announcement continue to apply and have not materially changed. The company confirms that the form and context in which the Competent Person's findings are presented have not been materially modified from the original market announcement.

Mining study (conceptual) and metallurgical test work supports the development of the El Refugio-La Soledad resource with conventional underground mining methods indicated as being appropriate and with high gold-silver recovery to produce metal on-site with conventional processing. The average vein width is approximately 4.5 metres.

Mithril is currently exploring in the Copalquin District to expand the resource footprint, demonstrating its multi-million-ounce gold and silver potential. Mithril has an exclusive option to purchase 100% interest in the Copalquin mining concessions by paying US$10M on or any time before 7 August 2028.

-ENDS-

Released with the authority of the Board. For further information contact:

John Skeet Managing Director and CEO jskeet@mithrilsilvergold.com

+61 435 766 809

NIKLI COMMUNICATIONS Corporate Communications liz@mithrilsilvergold.com

nicole@mithrilsilvergold.com

The Australian Securities Exchange has not reviewed and does not accept responsibility for the accuracy or adequacy of this release.

Neither TSX Venture Exchange nor its Regulation Services Provider (as that term is defined in policies of the TSX Venture Exchange) accepts responsibility for the adequacy or accuracy of this release.

Competent Persons Statement - JORC

The information in this announcement that relates to metallurgical test results, mineral processing and project development and study work has been compiled by Mr John Skeet who is Mithril's CEO and Managing Director. Mr Skeet is a Fellow of the Australasian Institute of Mining and Metallurgy. This is a Recognised Professional Organisation (RPO) under the Joint Ore Reserves Committee (JORC) Code.

Mr Skeet has sufficient experience of relevance to the styles of mineralisation and the types of deposits under consideration, and to the activities undertaken, to qualify as a Competent Person as defined in the 2012 Edition of the Joint Ore Reserves Committee (JORC) Australasian Code for Reporting of Exploration Results, Mineral Resources and Ore Reserves. Mr Skeet consents to the inclusion in this report of the matters based on information in the form and context in which it appears. The Australian Securities

Extracted image 23

Extracted image 24

Exchange has not reviewed and does not accept responsibility for the accuracy or adequacy of this release.

The information in this announcement that relates to sampling techniques and data, exploration results and geological interpretation for Mithril's Mexican project, has been compiled by Mr Darren LeFort who is Mithril's Exploration Manager. Mr LeFort is a member of the Engineers and Geoscientists of British Columbia and a Certified Professional Geologist (P.Geo). This is a Recognised Professional Organisation (RPO) under the Joint Ore Reserves Committee (JORC) Code.

Mr LeFort has sufficient experience of relevance to the styles of mineralisation and the types of deposits under consideration, and to the activities undertaken, to qualify as a Competent Person as defined in the 2012 Edition of the Joint Ore Reserves Committee (JORC) Australasian Code for Reporting of Exploration Results, Mineral Resources and Ore Reserves. Mr LeFort consents to the inclusion in this report of the matters based on information in the form and context in which it appears.

The information in this announcement that relates to Mineral Resources is reported by Mr Rodney Webster, former Principal Geologist at AMC Consultants Pty Ltd (AMC), who is a Member of the Australian Institute of Geoscientists. The report was peer reviewed by Andrew Proudman, Principal Consultant at AMC. Mr Webster is acting as the Competent Person, as defined in the 2012 Edition of the Joint Ore Reserves Committee (JORC) Australasian Code for Reporting of Exploration Results, Mineral Resources and Ore Reserves, for the reporting of the Mineral Resource estimate. A site visit was carried out by Jose Olmedo a geological consultant with AMC, in September 2021 to observe the drilling, logging, sampling and assay database. Mr Webster consents to the inclusion in this report of the matters based on information in the form and context in which it appears

Qualified Persons -NI 43-101

Scientific and technical information in this Report has been reviewed and approved by Mr John Skeet (FAUSIMM, CP) Mithril's Managing Director and Chief Executive Officer. Mr John Skeet is a qualified person within the meaning of NI 43-101.

Samples are sent to ALS Global with sample preparation performed in Chihuahua City, Mexico and assaying of sample pulps performed in North Vancouver, BC, Canada

Table 4 All drill results reported greater than or equal to 7 g/t AgEq (0.1 g/t AuEq)

Hole ID Sample ID From (m) To (m) Interval (m) Au (g/t) Ag (g/t) AgEq (g/t) AuEq (g/t)
AP25-001 826695 13.75 16.5 2.75 0.023 7.4 9.0 0.13
AP25-001 826706 32 32.5 0.5 1.21 39.3 124.0 1.77
AP25-001 826708 33.5 35 1.5 0.068 4.6 9.4 0.13
AP25-001 826711 38.1 38.67 0.57 0.203 38.6 52.8 0.75
AP25-001 826712 38.67 39.3 0.63 0.058 7.8 11.9 0.17
AP25-001 826721 48 49 1 0.025 5.8 7.6 0.11
AP25-001 826749 86 88 2 0.028 5.9 7.9 0.11
AP25-001 826807 164.55 165.1 0.55 0.134 26.5 35.9 0.51
AP25-001 826808 165.1 165.75 0.65 0.039 5.9 8.6 0.12
AP25-001 826843 207.75 209.05 1.3 0.059 5.8 9.9 0.14
AP25-001 826863 231.15 232.27 1.12 0.053 11.6 15.3 0.22
AP25-001 826866 233.93 234.43 0.5 0.141 4.2 14.1 0.2
AP25-001 826912 279.83 280.35 0.52 1.285 167 257.0 3.67
AP25-001 826961 328.4 329.3 0.9 0.055 9.9 13.8 0.2
AP25-002 827006 31.45 31.95 0.5 7.74 187 728.8 10.41
AP25-002 827007 31.95 32.47 0.52 0.338 66.8 90.5 1.29
AP25-002 827009 33 33.5 0.5 1.39 48.8 146.1 2.09
AP25-002 827011 34.43 35.3 0.87 0.096 11.2 17.9 0.26

Extracted image 25

Hole ID Sample From To Interval Au Ag (g/t) AgEq AuEq
AP25-002 ID 827023 (m) 46.15 (m) 46.65 (m) 0.5 (g/t) 0.178 13.3 (g/t) 25.8 (g/t) 0.37
AP25-002 827024 46.65 47.33 0.68 0.057 5.1 9.1 0.13
AP25-002 827029 50.2 51.25 1.05 0.012 8 8.8 0.13
AP25-002 827049 69.45 71.06 1.61 0.037 7.4 10.0 0.14
AP25-002 827052 71.6 72.2 0.6 0.061 7.4 11.7 0.17
AP25-002 827061 78.3 78.8 0.5 0.138 14 23.7 0.34
AP25-002 827085 103.55 104.05 0.5 0.136 16.9 26.4 0.38
AP25-002 827095 113.5 114.15 0.65 0.083 11.5 17.3 0.25
AP25-002 827173 205.4 206.5 1.1 0.088 8.1 14.3 0.2
AP25-002 827174 206.5 207.05 0.55 0.072 6.7 11.7 0.17
AP25-002 827176 207.05 207.85 0.8 0.19 7.6 20.9 0.3
AP25-002 827186 213.25 213.75 0.5 0.063 9.5 13.9 0.2
AP25-003 827244 34.5 35 0.5 0.393 62.4 89.9 1.28
AP25-003 827251 40 40.55 0.55 0.038 6.4 9.1 0.13
AP25-003 827280 72 72.8 0.8 0.048 4.2 7.6 0.11
AP25-003 827288 78.35 79.15 0.8 0.059 33.2 37.3 0.53
AP25-003 827298 89.15 89.65 0.5 0.099 13.4 20.3 0.29
AP25-003 827301 90.15 90.65 0.5 0.047 15.5 18.8 0.27
AP25-003 827307 93.1 93.6 0.5 0.043 11.6 14.6 0.21
AP25-003 827308 93.6 94.15 0.55 0.695 60.7 109.4 1.56
AP25-003 827309 94.15 94.7 0.55 0.128 27.4 36.4 0.52
AP25-003 827310 94.7 95.2 0.5 6.56 1240 1699.2 24.27
AP25-003 827311 95.2 95.7 0.5 4.99 1375 1724.3 24.63
AP25-003 827312 95.7 96.35 0.65 0.082 30.2 35.9 0.51
AP25-003 827332 119 121 2 0.017 6.6 7.8 0.11
AP25-003 827333 121 123 2 0.081 18.2 23.9 0.34
AP25-003 827383 186.55 187.05 0.5 0.163 40.6 52.0 0.74
AP25-003 827404 214 215.3 1.3 2.89 0.5 26.8 202.8 2.9 0.39
AP25-003 AP25-003 827405 827414 215.3 224 215.8 225.45 0.5 1.45 0.008 0.104 0.5 27.4 7.8 0.11
AP25-003 1.1 0.49
827415 225.45 226.55 0.019 33.1 34.4
AP25-003 827423 231.6 232.3 0.7 2.38 1.5 168.1 2.4
AP25-003 AP25-004 827427 234 236 2 0.014 6.9 7.9 0.11
AP25-004 827493 30 30.5 0.5 0.09 13.2 19.5 0.28 0.39
827509 40.75 41.35 0.6 0.094 20.9 27.5
AP25-004 827513 827542 42.85 76.6 43.65 78 0.8 1.4 0.094 0.053 16.1 6.2 22.7 9.9 0.32 0.14
AP25-004 AP25-004 827553 88.7 89.2 0.5 0.081 3.9 9.6 0.14
AP25-004 827554 89.2 90.15 0.95 0.74 135 186.8 2.67
AP25-004 827555 90.15 90.65 0.5 0.259 61.4 79.5 1.14
0.05 7.5 11.0 0.16
AP25-004 AP25-004 827557 827558 91.15 92 0.85 12.2 0.17
AP25-004 827561 92 97 94 98.3 2 1.3 0.139 0.017 2.5 9.2 10.4 0.15
AP25-004 827567 105.9 106.4 0.5 0.036 9 11.5 0.16
AP25-004 827574 114.15 114.65 0.5 0.385 87.8 114.8 1.64
AP25-004 827603 152.45 152.95 0.5 0.062 16.6 20.9 0.3
AP25-004 827617 173.85 174.35 0.5 0.035 5.9 8.4 0.12
827618 174.35 174.85 0.685 98 146.0
AP25-004 827664 238.15 0.5 2.09
AP25-004 AP25-004 827665 238.95 238.95 239.55 0.8 0.169 1.7 13.5 0.19 0.11
AP25-004 827687 262 262.5 0.6 0.5 0.041 5 7.9
AP25-004 827693 266.45 266.95 0.5 0.063 4.2 8.6 0.12
AP25-004 269.6 0.059 2.9 7.0 0.1
AP25-005 827697 827729 269.05 0.55 0.027 6.5 8.4 0.12
AP25-005 827737 20 35.65 22 36.75 2 1.1 0.005 9.6 15.5 10.0 18.5 0.14
827738 36.75 0.043 0.26
AP25-005 AP25-005 827739 37.25 37.25 37.8 0.5 0.55 0.342 0.775 99 236 122.9 290.3 1.76 4.15
AP25-005 827741 37.8 38.35 0.55 0.119 52.6 60.9 0.87
AP25-005 827742 38.35 39.7 1.35 0.036 18 20.5 0.29
AP25-005 827753 48.65 49.55 0.9 0.108 20.9 28.5 0.41
AP25-005 827755 51.8 0.5 0.091 0.3
51.3 0.091 14.9 21.3
AP25-005 827784 88 88.5 0.5 6.8 13.2 0.19

Extracted image 27

Hole ID Sample ID From (m) To (m) Interval (m) Au (g/t) Ag (g/t) AgEq (g/t) AuEq (g/t)
AP25-005 827786 89.5 90.15 0.65 0.041 5.1 8.0 0.11
AP25-005 827787 90.15 90.65 0.5 0.159 25.1 36.2 0.52
AP25-005 827789 92.45 93 0.55 7.04 1090 1582.8 22.61
AP25-005 827790 93 93.5 0.5 3.5 420 665.0 9.5
AP25-005 827802 110.6 111.55 0.95 0.054 4.6 8.4 0.12
AP25-005 827805 114.55 115.05 0.5 0.067 5.6 10.3 0.15
AP25-005 827807 116.5 117 0.5 0.321 72.9 95.4 1.36
AP25-005 827811 119 119.75 0.75 0.041 4.8 7.7 0.11
AP25-005 827812 119.75 120.45 0.7 0.043 4.3 7.3 0.1
AP25-005 827813 120.45 121.05 0.6 0.138 20.1 29.8 0.43
AP25-005 827883 213.5 214.6 1.1 0.026 7.1 8.9 0.13
AP25-005 827899 232 232.5 0.5 0.317 61.2 83.4 1.19
AP25-005 827910 246.45 248 1.55 0.008 7.6 8.2 0.12
AP25-005 827911 248 249 1 0.006 8 8.4 0.12
AP25-005 827912 249 250.5 1.5 0.074 12.3 17.5 0.25
AP25-005 827952 304.6 305.1 0.5 0.044 3.9 7.0 0.1
AP25-005 827965 321 321.5 0.5 0.032 21.9 24.1 0.34
AP25-005 827966 321.5 322.2 0.7 0.028 5.1 7.1 0.1
AP25-005 827983 346.7 348.35 1.65 0.16 0.5 11.7 0.17
AP25-006 828029 47.25 48 0.75 0.033 30.4 32.7 0.47
AP25-006 828040 66.3 67.75 1.45 0.019 6 7.3 0.1
AP25-006 828058 119.2 119.8 0.6 5.51 432 817.7 11.68
AP25-006 828059 119.8 120.45 0.65 3.66 388 644.2 9.2
AP25-006 828060 120.45 122 1.55 0.095 12.3 19.0 0.27
AP25-006 828073 138.1 139 0.9 2.41 447 615.7 8.8
AP25-006 828084 148.25 148.75 0.5 0.047 6.1 9.4 0.13
AP25-006 828085 148.75 149.25 0.5 0.065 11.4 16.0 0.23
AP25-006 828086 149.25 149.75 0.5 0.131 22.7 31.9 0.46
AP25-006 828087 149.75 150.55 0.8 1.51 321 426.7 6.1
AP25-006 828088 150.55 151.4 0.85 0.045 9.4 12.6 0.18
AP25-006 828092 172.1 172.6 0.5 0.064 9.4 13.9 0.2
AP25-006 828106 208 209 1 0.022 6.2 7.7 0.11
AP25-006 828141 243.15 244 0.85 0.023 8.4 10.0 0.14
AP25-006 828152 266.25 267.15 0.9 0.038 7.2 9.9 0.14
AP25-006 828167 300.9 301.4 0.5 0.139 36.9 46.6 0.67
AP25-006 828168 301.4 301.9 0.5 0.187 73 86.1 1.23
AP25-006 828169 301.9 302.4 0.5 0.03 6.3 8.4 0.12
AP25-006 828171 302.4 302.9 0.5 0.242 45.2 62.1 0.89
AP25-007 828197 29 30 1 0.033 6 8.3 0.12
AP25-007 828203 50.25 51 0.75 0.049 8 11.4 0.16
AP25-007 828204 51 52 1 0.067 15.2 19.9 0.28
AP25-007 828205 52 52.5 0.5 0.554 39 77.8 1.11
AP25-007 828211 57.85 58.35 0.5 0.095 10.1 16.8 0.24
AP25-007 828214 60.1 60.9 0.8 0.025 8.1 9.9 0.14
AP25-007 828217 62.75 63.3 0.55 0.13 40.1 49.2 0.7
AP25-007 828219 63.8 64.3 0.5 0.033 5.3 7.6 0.11
AP25-007 828221 64.3 64.8 0.5 0.922 311 375.5 5.36
AP25-007 828226 67 67.85 0.85 0.044 7.9 11.0 0.16
AP25-007 828233 73 74.15 0.65 0.024 5.7 7.4 0.6
AP25-007 828234 73.65 73.65 0.5 0.184 28.8 41.7 0.11
AP25-007 828252 93.95 94.45 0.5 0.088 8.2 14.4 0.21
AP25-008 828292 78.2 78.9 0.7 0.344 11.9 36.0 0.51

Extracted image 29

Extracted image 30

JORC Code, 2012 Edition -Table 1 Section 1 Sampling Techniques and Data

Criteria JORC Code explanation Commentary
Sampling techniques • Nature and quality of sampling (eg cut channels, random chips, or specific specialised industry standard measurement tools appropriate to the minerals under investigation, such as down hole gamma sondes, or handheld XRF instruments, etc). These examples should not be taken as limiting the broad meaning of sampling. • Include reference to measures taken to ensure sample representativity and the appropriate calibration of any measurement tools or systems used. • Aspects of the determination of mineralisation that are Material to the Public Report. • In cases where 'industry standard' work has been done this would be relatively simple (eg 'reverse circulation drilling was used to obtain 1 msamples from which 3 kg was pulverised to produce a 30 g charge for fire assay'). In other cases more explanation may be required, such as where there is coarse gold that has inherent sampling problems. Unusual commodities or mineralisation types (eg submarine nodules) may warrant disclosure of detailed information. • Drill core samples are cut lengthwise with a diamond saw. Intervals are nominally 1 mbut may vary between 0.5 mto 1.5 mbased on geologic criteria. • The same side of the core is always sent to sample (left side of saw). • Reported intercepts are calculated as either potentially underground mineable (>100m down hole) or as potentially open-pit mineable (near surface). • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • Rock Sawn Channel samples underground and surface are collected with the assistance of a handheld portable saw. The channels are 2.5 to 3cm deep and 6-8 cm wide along continuous lines oriented perpendicular to the mineralized structure. The samples are as representative as possible • Rock Sawn Channel surface samples were surveyed with a Handheld GPS then permanently mark with an aluminium tag and red colour spray across the strike of the outcrop over 1 metre. Samples are as representative as possible • Rock Sawn Channel underground samples were located after a compass and tape with the mine working having a surveyed control point at the portal, then permanently marked with an aluminium tag and red colour spray oriented perpendicular to the mineralized structure. Samples are as representative as possible • Soil sampling has been carried out by locating pre-planned points by handheld GPS and digging to below the first colour-change in the soil (or a maximum of 50 cm). In the arid environment there is a 1 - 10 cm organic horizon and a 10 - 30 cm B horizon above the regolith. Samples are sieved to -80 mesh in the field. Samples are collected on a 20 mx50mgrid or every20monN - S lines 50 mapart. These samples are considered representative of the medium being sampled and lines are appropriately oriented to the nearly E - W structural trend.
Drilling techniques • Drill type (eg core, reverse circulation, open-hole hammer, rotary air blast, auger, Bangka, sonic, etc) and details (eg core diameter, triple or standard tube, depth of diamond tails, face-sampling bit or other type, whether core is oriented and if so, by what method, etc). • Drilling is done with MP500 man-portable core rigs capable of drilling HQ size core to depths of 350-400m (depending on ground conditions), reducing to NQ size core for greater depths. Core is recovered in a standard tube.

Extracted image 31

Criteria JORC Code explanation Commentary
Drill sample recovery • Method of recording and assessing core and chip sample recoveries and results assessed. • Measures taken to maximise sample recovery and ensure representative nature of the samples. • Whether a relationship exists between sample recovery and grade and whether sample bias may have occurred due to preferential loss/gain of fine/coarse material. • Drill recovery is measured based on measured length of core divided by length of drill run. • Recovery in holes CDH-001 through CDH-025 and holes CDH-032 through CDH-077 was always above 90% in the mineralized zones. Detailed core recovery data are maintained in the project database. • Holes CDH-026 through CDH-031 had problems with core recovery in highly fractured, clay rich breccia zones. • There is no adverse relationship between recovery and grade identified to date.
Logging • Whether core and chip samples have been geologically and geotechnically logged to a level of detail to support appropriate Mineral Resource estimation, mining studies and metallurgical studies. • Whether logging is qualitative or quantitative in nature. Core (or costean, channel, etc) photography. • The total length and percentage of the relevant intersections logged. • Geotechnical and geological logging of the drill core takes place on racks in the company core shed. • Core samples have been geologically and geotechnically logged to a level of detail to support appropriate Mineral Resource estimation, mining studies and metallurgical studies. • Core logging is both qualitative or quantitative in nature. Photos are taken of each box of core before samples are cut. Photos of cut core intervals are taken after sampling. Core is wetted to improve visibility of features in the photos. • All core has been logged and photographed. • Rock sawn channel samples are marked, measured and photographed at location
Sub-sampling techniques and sample preparation • If core, whether cut or sawn and whether quarter, half or all core taken. • If non-core, whether riffled, tube sampled, rotary split, etc and whether sampled wet or dry. • For all sample types, the nature, quality and appropriateness of the sample preparation technique. • Quality control procedures adopted for all sub-sampling stages to maximise representativity of samples. • Measures taken to ensure that the sampling is representative of the in situ material collected, including for instance results for field duplicate/second-half sampling. • Whether sample sizes are appropriate to the grain size of the material being sampled. • Core is sawn and half core is taken for sample. • Samples are prepared using ALS Minerals Prep-31 crushing, splitting and pulverizing. This is appropriate for the type of deposit being explored. • Visual review to assure that the cut core is ½of the core is performed to assure representativity of samples. • Crushed core duplicates are split/collected by the laboratory and submitted for assay (1 in 30 samples) • Sample sizes are appropriate to the grain size of the material being sampled. • Rock sawn channel samples and soil samples are prepared using ALS Minerals Prep-31 crushing, splitting and pulverizing. This is appropriate for the type of deposit being explored.
Quality of assay data and laboratory tests • The nature, quality and appropriateness of the assaying and laboratory procedures used and whether the technique is considered partial or total. • Samples are assayed for gold using ALS Minerals Au-AA25 method a 30 g fire assay with an AA finish. This is considered a total assay technique.

Extracted image 33

Criteria JORC Code explanation Commentary
• For geophysical tools, spectrometers, handheld XRF instruments, etc, the parameters used in determining the analysis including instrument make and model, reading times, calibrations factors applied and their derivation, etc. • Nature of quality control procedures adopted (eg standards, blanks, duplicates, external laboratory checks) and whether acceptable levels of accuracy (ie lack of bias) and precision have been established. • Samples are assayed for silver using ALS Minerals ME-ICP61 method. Over limits are assayed by silverOG63 and silverGRAV21. These are considered a total assay technique. • Standards and blanks are inserted at a rate of one per every 25 samples and one per every 40 samples, respectively. Pulp duplicate sampling is undertaken for 3% of all samples (see above). External laboratory checks will be conducted as sufficient samples are collected. Levels of accuracy (ie lack of bias) and precision have not yet been established. • Certified Reference Materials - Rock Labs and CDN CRMs have been used throughout the project including, low (~2 g/t Au), medium (~9 g/t Au) and high (~18g/t Au and ~40 g/t Au). Results are automatically checked on data import into the BEDROCK database to fall within 2 standard deviations of the expected value. • Samples with significant amounts of observed visible gold are also assayed by AuSCR21, a screen assay that analyses gold in both the milled pulp and in the residual oversize from pulverization. This has been done for holes CDH-075 and CDH-077.
Verification of sampling and assaying • The verification of significant intersections by either independent or alternative company personnel. • The use of twinned holes. • Documentation of primary data, data entry procedures, data verification, data storage (physical and electronic) protocols. • Discuss any adjustment to assay data. • The verification of significant intersections by either independent or alternative company personnel has not been conducted. A re-assay program of pulp duplicates is currently in progress. • MTH has drilled one twin hole. Hole CDH-072, reported in the 15/6/2021 announcement, is a twin of holes EC-002 and UC-03. Results are comparable. • Documentation of primary data, data entry procedures, data verification, data storage (physical and electronic) protocols are maintained in the company's core facility. • Assay data have not been adjusted other than applying length
Location of data points • Accuracy and quality of surveys used to locate drill holes (collar and down-hole surveys), trenches, mine workings and other locations used in Mineral Resource estimation. • Specification of the grid system used. • Quality and adequacy of topographic control. • Drill collar coordinates are currently located by handheld GPS. Precise survey of hole locations is planned. Downhole surveys of hole deviation are recorded using a Reflex Multishot tool for all holes. A survey measurement is first collected at 15 meters downhole, and then every 50 meters until the end of the hole. Locations for holes have been surveyed with differential GPS to a sub 10 cm precision. • UTM/UPS WGS 84 zone 13N • High quality topographic control from LiDAR imagery and orthophotos covers the entire project area.
Data spacing and distribution • Data spacing for reporting of Exploration Results. • Whether the data spacing and distribution is sufficient to establish the degree of geological and grade continuity appropriate for the Mineral Resource and Ore Reserve estimation procedure(s) and classifications applied. • Data spacing is appropriate for the reporting of Exploration Results. • The Resource estimation re-printed in this announcement was originally released on 17 Nov 2021 • No sample compositing has been applied.

Extracted image 35

Criteria JORC Code explanation Commentary
• Whether sample compositing has been applied.
Orientation of data in relation to geological structure • Whether the orientation of sampling achieves unbiased sampling of possible structures and the extent to which this is known, considering the deposit type. • If the relationship between the drilling orientation and the orientation of key mineralised structures is considered to have introduced a sampling bias, this should be assessed and reported if material. • Cut lines are marked on the core by the geologists to assure that the orientation of sampling achieves unbiased sampling of possible structures. This is reasonably well observed in the core and is appropriate to the deposit type. • The relationship between the drilling orientation and the orientation of key mineralised structures is not considered to have introduced a sampling bias. • Rock sawn channel samples are cut perpendicular to the observed vein orientation wherever possible
Sample security • The measures taken to ensure sample security. • Samples are stored in a secure core storage facility until they are shipped off site by small aircraft and delivered directly to ALS Global sample preparation facility in Chihuahua, Mexico. ALS airfreights the sample pulps to their assaying facility in North Vancouver, BC, Canada
Audits or reviews • The results of any audits or reviews of sampling techniques and data. • A review with spot checks was conducted by AMC in conjunction with the resource estimate published 17 Nov 2021. Results were satisfactory to AMC.

Section 2 Reporting of Exploration Results

Criteria JORC Code explanation Commentary Commentary Commentary Commentary Commentary
Mineral tenement and land tenure status • Type, reference name/number, location and ownership including agreements or material issues with third parties such as joint ventures, partnerships, overriding royalties, native title interests, historical sites, wilderness or national park and environmental settings. • The security of the tenure held at the time of reporting along with any known impediments to obtaining a licence to operate in • Concessions at Copalquin • Concessions at Copalquin • Concessions at Copalquin • Concessions at Copalquin • Concessions at Copalquin
Mineral tenement and land tenure status • Type, reference name/number, location and ownership including agreements or material issues with third parties such as joint ventures, partnerships, overriding royalties, native title interests, historical sites, wilderness or national park and environmental settings. • The security of the tenure held at the time of reporting along with any known impediments to obtaining a licence to operate in No. Concession Concession Title number Area (Ha) Location
Mineral tenement and land tenure status • Type, reference name/number, location and ownership including agreements or material issues with third parties such as joint ventures, partnerships, overriding royalties, native title interests, historical sites, wilderness or national park and environmental settings. • The security of the tenure held at the time of reporting along with any known impediments to obtaining a licence to operate in 1 LA SOLEDAD 52033 6 Tamazula, Durango, Mexico
Mineral tenement and land tenure status • Type, reference name/number, location and ownership including agreements or material issues with third parties such as joint ventures, partnerships, overriding royalties, native title interests, historical sites, wilderness or national park and environmental settings. • The security of the tenure held at the time of reporting along with any known impediments to obtaining a licence to operate in 2 EL COMETA 164869 36 Tamazula, Durango, Mexico
Mineral tenement and land tenure status • Type, reference name/number, location and ownership including agreements or material issues with third parties such as joint ventures, partnerships, overriding royalties, native title interests, historical sites, wilderness or national park and environmental settings. • The security of the tenure held at the time of reporting along with any known impediments to obtaining a licence to operate in 3 SAN MANUEL 165451 36 Tamazula, Durango, Mexico
Mineral tenement and land tenure status • Type, reference name/number, location and ownership including agreements or material issues with third parties such as joint ventures, partnerships, overriding royalties, native title interests, historical sites, wilderness or national park and environmental settings. • The security of the tenure held at the time of reporting along with any known impediments to obtaining a licence to operate in 4 COPALQUIN 178014 20 Tamazula, Durango, Mexico
Mineral tenement and land tenure status the area. 5 EL SOL 236130 6,000 Tamazula, Durango and Badiraguato, Sinaloa, México
Mineral tenement and land tenure status the area. 6 EL CORRAL • 236131 907.3243 Tamazula, Durango and Badiraguato, Sinaloa, México

Extracted image 37

Criteria JORC Code explanation Commentary
Exploration done by other parties • Acknowledgment and appraisal of exploration by other parties. • Previous exploration by Bell Coast Capital Corp. and UC Resources was done in the late 1990's and in 2005 - 2007. Work done by these companies is historic and non-JORC compliant. Mithril uses these historic data only as a general guide and will not incorporate work done by these companies in resource modelling. • Work done by the Mexican government and by IMMSA and will be used for modelling of historic mine workings which are now inaccessible (void model)
Geology • Deposit type, geological setting and style of mineralisation. • Copalquin is a low sulfidation epithermal gold-silver deposit hosted in andesite. This deposit type is common in the Sierra Madre Occidental of Mexico and is characterized by quartz veins and stockworks surrounded by haloes of argillic (illite/smectite) alteration. Veins have formed as both low- angle semi-continuous lenses parallel to the contact between granodiorite and andesite and as tabular veins in high-angle normal faults. Vein and breccia thickness has been observed up to 30 meters wide with average widths on the order of 3 to 5 meters. The overall strike length of the semi- continuous mineralized zone from El Gallo to Refugio, Cometa, Los Pinos, Los Reyes, La Montura to Constancia and Santa Cruz is almost 7 kilometres. The southern area from south west of Apomal to San Manuel and to Las Brujas-El Peru provides additional exploration potential up to 6km.
Drill hole Information • A summary of all information material to the understanding of the exploration results including a tabulation of the following information for all Material drill holes: • easting and northing of the drill hole collar • elevation or RL (Reduced Level - elevation above • sea level in metres) of the drill hole collar • dip and azimuth of the hole • down hole length and interception depth • hole length. • If the exclusion of this information is justified on the basis that the information is not Material and this exclusion does not detract from the understanding of the report, the Competent Person should clearly explain why this is the case. See Table 2 in the announcement.

Extracted image 39

Criteria JORC Code explanation Commentary Commentary Commentary Commentary Commentary Commentary Commentary Commentary Commentary
Data aggregation methods • In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH- • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH- • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH- • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH- • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH- • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH- • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH- • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH- • Potentially underground mineable intercepts are calculated as length weighted averages of material greater than or equal to 1 g/t AuEQ_70 allowing up to 2m of internal dilution. • Potentially open-pit mineable intercepts are calculated as length weighted averages of material greater than or equal to 0.25 g/t AuEQ_70 allowing for up to 2m of internal dilution. • No upper cut-off is applied to reporting intercepts. • Length weighted averaging is used to report intercepts. The example of CDH-
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. Au Raw 7.51 11.85 silver raw Lengt h (m) Au *length silver *length
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 678 0.5 3.755 339
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 0 425 0.55 6.5175 233.75
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 0 0 0 0
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 0.306 16 1 0.306 16
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 0.364 31.7 1 0.364 31.7
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 3.15 241 0.5 1.575 120.5
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 5.35
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 10.7 709 0.5 354.5
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 15.6 773 0.5 7.8 386.5 From Length Au gpt silver gpt
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. 4.55 25.667 1481.9 91.95 4.55 5.64 325.7
• In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (eg cutting of high grades) and cut-off grades are usually Material and should be stated. • Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. • The assumptions used for any reporting of metal equivalent values should be clearly stated. • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin • In determining the gold equivalent (AuEq.) grade for reporting, a gold:silver price ratio of 70:1 was determined, using the formula: AuEq grade = Au grade + ((silver grade/70) x (silver recovery/Au recovery)). The metal prices used to determine the 70:1 ratio are the cumulative average prices for 2021: gold USD1,798.34 and silver: USD25.32 (actual is 71:1) from kitco.com. At this early stage, the metallurgical recoveries are assumed to be equal (93%), Subsequent preliminary metallurgical test work produced recoveries of 91% for silver and 96% for gold (ASX Announcement 25 February 2022). • For Rock Saw Channel Sampling and soil sampling in the Copalquin

Extracted image 41

Criteria JORC Code explanation Commentary
Relationship between mineralisation widths and intercept lengths • These relationships are particularly important in the reporting of Exploration Results. • If the geometry of the mineralisation with respect to the drill hole angle is known, its nature should be reported. • If it is not known and only the down hole lengths are reported, there should be a clear statement to this effect (eg 'down hole length, true width not known'). • True widths at Refugio between sections 120 and 1,000 vary according to the hole's dip. Holes drilled at -50 degrees may be considered to have intercept lengths equal to true-widths, Holes drilled at -70 degrees had true widths approximately 92% of the reported intercept lengths and holes drilled at -90 degrees had true widths of 77% of the reported intercept lengths. • True widths at La Soledad are not fully understood and downhole intercepts to date, are reported. • At Las Brujas in Target 2, true widths are not yet known since we are still in the early stages of target definition. • Rock sawn channel samples are cut perpendicular to the observed vein orientation wherever possible
Diagrams • Appropriate maps and sections (with scales) and tabulations of intercepts should be included for any significant discovery being reported. These should include, but not be limited to a plan view of drill hole collar locations and appropriate sectional views. See figures in announcement
Balanced reporting • Where comprehensive reporting of all Exploration Results is not practicable, representative reporting of both low and high grades and/or widths should be practiced to avoid misleading reporting of Exploration Results. • All exploration results are reported for intercepts greater than or equal to 0.1 g/t gold equivalent (gold plus silver at 70:1 price ratio for gold:silver).
Other substantive exploration data • Other exploration data, if meaningful and material, should be reported including (but not limited to): geological observations; geophysical survey results; geochemical survey results; bulk samples - size and method of treatment; metallurgical test results; bulk density, groundwater, geotechnical and rock characteristics; potential deleterious or contaminating substances. • No additional exploration data are substantive at this time. • Metallurgical test work on drill core composite made of crushed drill core from the El Refugio drill hole samples has been conducted. • The samples used for the test work are representative of the material that makes up the majority of the Maiden Resource Estimate for El Refugio release on 17 th November 2021. • The test work was conducted by SGS laboratory Mexico using standard reagents and test equipment.

Extracted image 43

Criteria JORC Code explanation Commentary
Further work • The nature and scale of planned further work (eg tests for lateral extensions or depth extensions or large-scale step-out drilling). • Diagrams clearly highlighting the areas of possible extensions, including the main geological interpretations and future drilling areas, provided this information is not commercially sensitive. • The Company drilled 148 diamond core holes from July 2020 to July 2022 for 32,712 m. The Company has stated its target to drill up to 45,000m from July 2025 until the second half of 2026 • Diagrams are included in the announcements and presentations showing the drill target areas within the Copalquin District

Extracted image 45
